- 1.71 V to 5.50 V Supply (VDD)
- Operating Temperature Range: -40°C to 85°C
- RoHS Compliant/Halogen-Free/Pb-Free

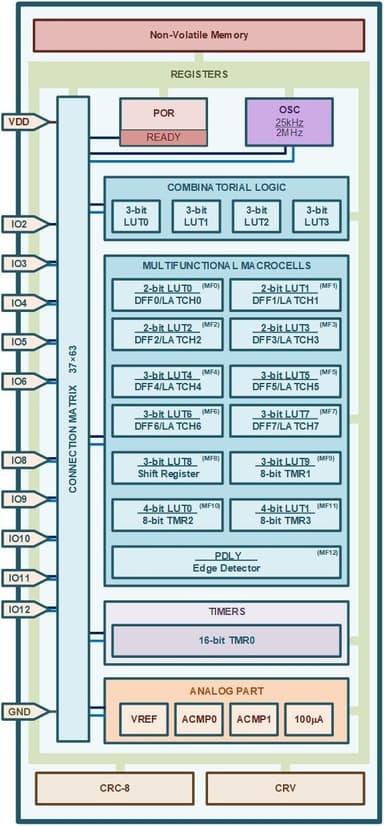

- Two Analog Comparators (ACMP)
- Voltage Reference (VREF)
- 100uA Current Source
- Four Combinatorial Logic Macrocells
- Thirteen Multifunctional Macrocells
- One Programmable Delay or Edge Detector
- One 16-bit Timer
- One Oscillator (OSC)
- Power On Reset (POR)
Configurable µASIC

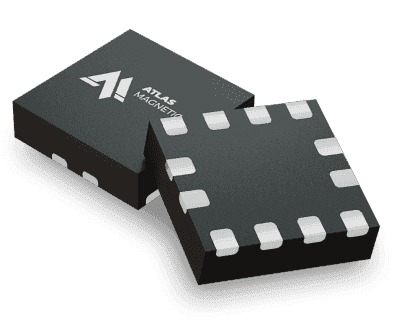

AM1U1412
Active
Product Overview & Demonstration
Watch our comprehensive video guide showcasing the AM1U1412
More videosHardware Tools
Bring your design prototype to life with intuitive evaluation boards
µASIC Ferro Board—an all-in-one solution for configuring, testing, and programming µASIC parts. With seamless USB-C connectivity to your computer and integration with the powerful Atlas EDA software, you can confidently evaluate and validate your custom designs. Conveniently placed probe points on the board facilitate easy design verification, while the Atlas EDA software generates realistic user behavior signals.
